CableMate DSUB - DB25 Edition

The CableMate Pro DB25 Edition is a purpose-built soldering and assembly jig designed specifically for DB25 D-sub connectors. Whether you're building analogue snakes, Tascam-format breakout cables, patchbay looms, or custom studio wiring, CableMate Pro makes the process faster, easier, and far less error-prone.

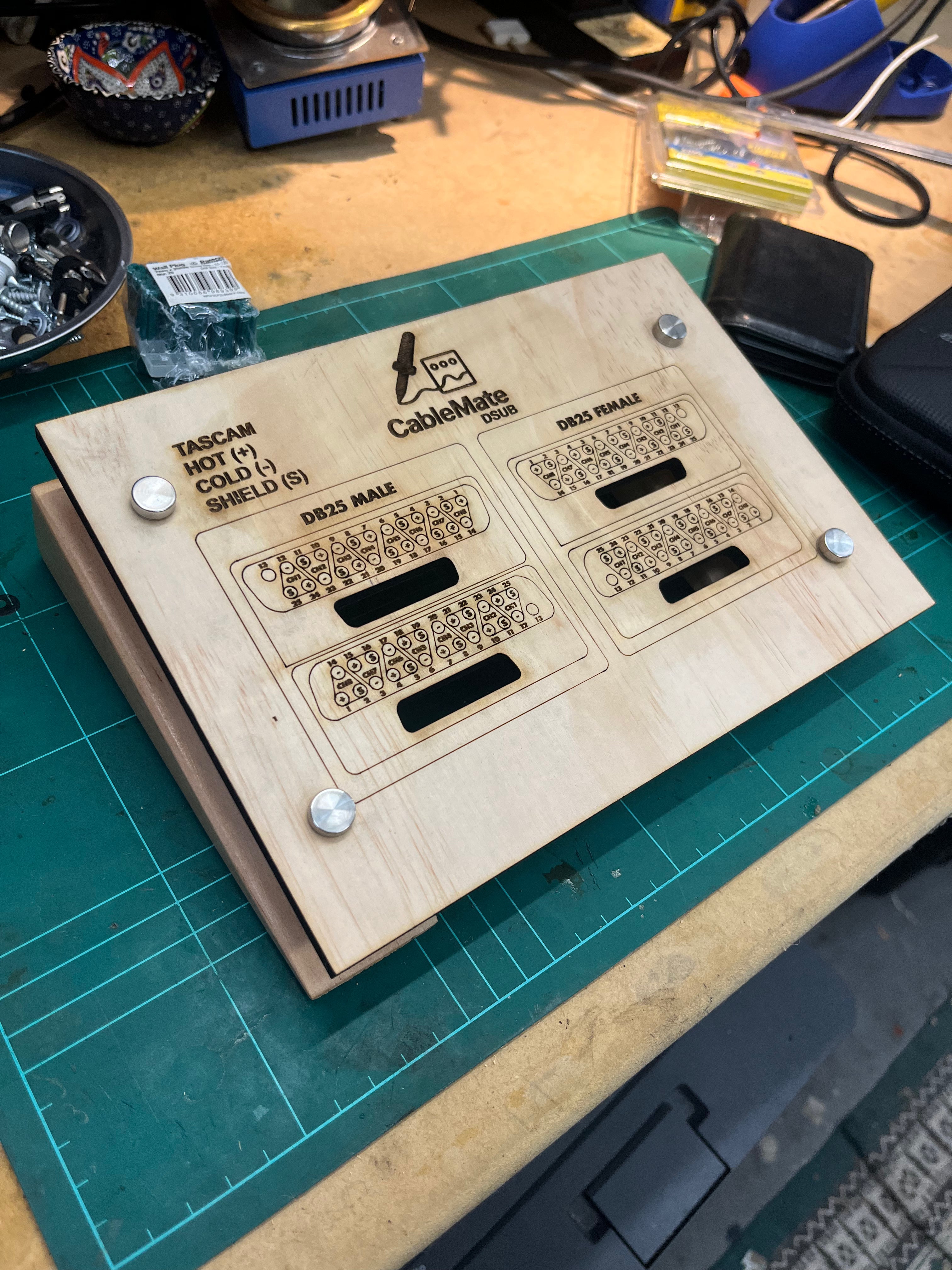

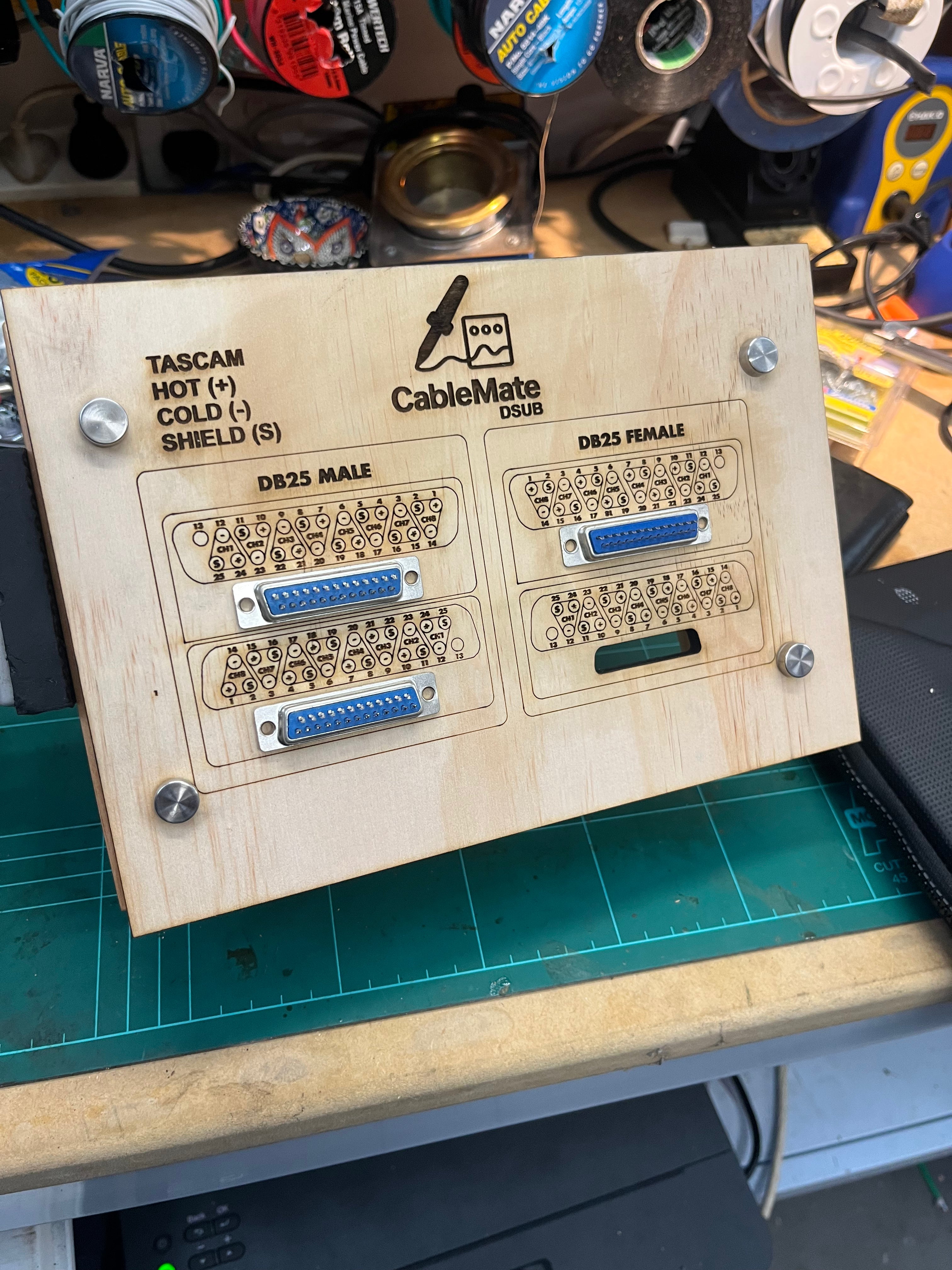

The jig features four dedicated DB25 slots, including two positions for male connectors and two positions for female connectors. Each slot securely holds the connector in place while you solder, allowing you to work comfortably with both hands free.

What sets the DB25 Edition apart is the large, clearly engraved pinout reference built directly into the jig. Every connector position includes a complete DB25 pinout, making it easy to identify the correct pins without constantly referring to diagrams, manuals, or online resources.

The lower two slots feature the pinout engraved upside down, matching the orientation typically seen when working on the opposite side of the connector. This simple but incredibly useful feature helps eliminate confusion and reduces wiring mistakes when switching between solder and mating sides of the connector.

Features

• Four DB25 connector positions
• Two male and two female DB25 slots
• Securely holds connectors during soldering and assembly
• Large, permanently engraved DB25 pinout reference for TASCAM pinouts
• Inverted pinout markings on lower slots for opposite-side wiring
• Reduces wiring errors and speeds up cable assembly
• Ideal for studio installations, patchbays, multicore snakes, and custom cable builds
• Designed and manufactured by audio professionals for real-world workshop use

Whether you're wiring a single breakout cable or an entire studio, the CableMate Pro DB25 Edition keeps your connectors secure and the pinout information exactly where you need it.
